Cable Types

TOP GUN - SPIRAL WIRE (STANDARD)

5mm, 7mm and 8mm double insulated, high temperature cable (250°C plus). Features a reinforced fibreglass braid interwoven between the layers of silicone insulation. The conductor utilises a spirally wound stainless steel construction, in which a single stainless steel wire is helically wound around either a ferrite or kevlar carrier. The conductor has good RFI suppression qualities, with a resistance of approx.
6,000 Ohms (+/- 10%) per meter length. The cable allows a premium spark and is suited for all LP Gas applications.
Prefix part number with TG

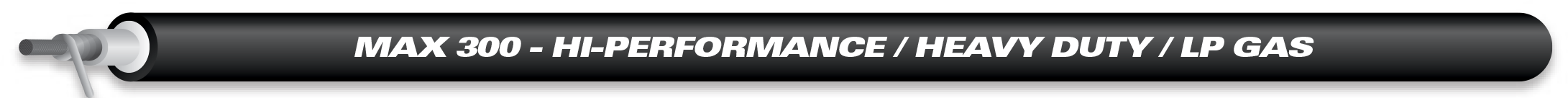

MAX 300 HI-PERFORMANCE (HEAVY DUTY)

5mm, 7mm and 8mm premium quality cable, double insulated, high temperature silicone cable, rated 315°C (peak operating). Features a reinforced fibreglass braid interwoven between the layers of insulation. A patented formulation is applied over the jacket which chemically grafts to the jacket material. The grafted surface enhances the abrasion and heat resistance of the finished conductor. The conductor utilises a spirally wound stainless steel construction, in which stainless steel wire is helically wound around either a ferrite or kevlar carrier. The conductor has excellent RFI suppression qualities, with a resistance of approx. 500 Ohms (+/- 10%) per metre length. This cable is uniquely suited for situations where the original cable holders are to be used. Kits are only available in black and are made of the same cable diameter as original sets where applicable.
Prefix part number with MAX

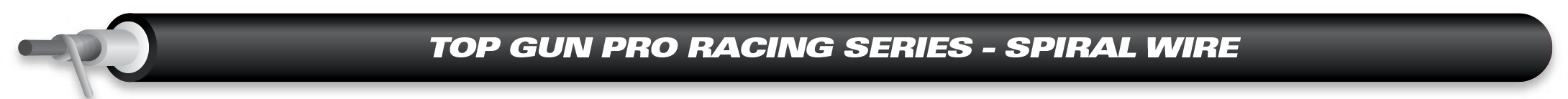

TOP GUN - PRO RACING SPIRAL WIRE

8.8mm and 10.0mm double insulated, high temperature cable (250°C plus). Features a reinforced fibreglass braid interwoven between the layers of silicone insulation. The conductor utilises a spirally wound stainless steel construction, in which a single stainless steel wire is helically wound around either a ferrite or kevlar carrier. This conductor has good RFI suppression qualities, with a resistance of approx. 2,000 Ohms (+/- 10%) per metre length. Uniquely suited for performance applications, for both race track and street applications.
Gloss Blue, Gloss Red and Gloss Black kits in 8.8mm are available. Prefix part numbers by 8.8SP
Gloss Blue, Gloss Red and Gloss Black kits in 10.0mm are available. Prefix part numbers by 10SP

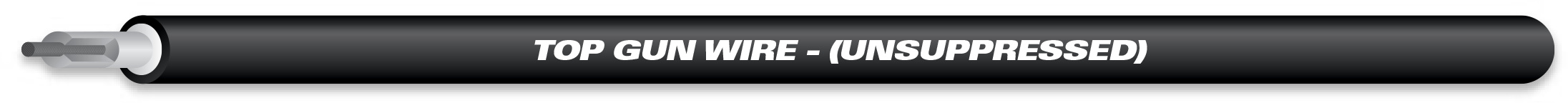

TOP GUN - UNSUPPRESSED WIRE CORE CABLE

7mm, 8mm and 10mm double insulated, high temperature cable, rated at 250°C plus (peak operating). Features a reinforced fibreglass braid interwoven between the layers of silicone insulation. The conductor is nickel coated copper, with zero resistance. This product provides the maximum possible spark. Ideal for the hi-performance race track situation where RFI interference suppression is not important.
Not suitable for computerised ignition applications.
For 7mm sets, prefix part number by 7W (cable available in black only)
For 8mm sets, prefix part number by 8W (cable available in red only)
For 10mm sets, prefix part number by 10W (cable available in red only)
